  Home >> DMR radio >> BaoFeng UV-5R 136-174/400-480 MHz Dual-Band DTMF CTCSS DCS FM Ham Two Way Radio

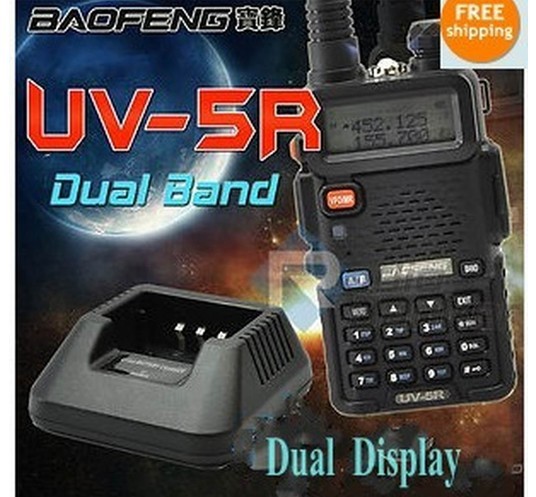

BaoFeng UV-5R 136-174/400-480 MHz Dual-Band DTMF CTCSS DCS FM Ham Two Way Radio [Comments(0)|Leave your Comment]
Item#:12100602312444
Score:15  (Score change Discount Voucher)
Weight:.85 kg.
List Price:$25.00
Price:$15.00
You Save:$10.00
Qty:

Prev:Cheap Ham radio,Cheap walkie talkie,Amateur radio,UV-5R PLUS,interphone,dual band ,dual display,dual standby,two way transceiver, walkie & talkie ,CE,ROHS ,FCC approval walkie talkie

Next:TYT TH-UV3R Dual Band Micro Amateur Ham Radio 2M/220mhz ( 136-174 & 220-260 MHz)

detail

Related

Comment

Payment

Shipping

BaoFeng UV-5R 136-174/400-480 MHz Dual-Band DTMF CTCSS DCS FM Ham Two Way Radio

BaoFeng UV-5R 136-174/400-480 MHz Dual-Band DTMF CTCSS DCS FM Ham Two Way Radio

ITEM DESCRIPTION:

Product Description



This BAOFENG UV-5R transceiver is a micro-miniature multiband FM transceiver with extensive receive frequency coverage, providing local-area two-way amateur communications along with unmatched monitoring capability.


Frequency Range: 65-108MHz(FM Receive only) 136-174MHZ and 400-480HZ (TX/RX)
Channel No.: 128
Frequency Stability: ±2.5ppm
Antenna: High gain Dual Band antenna
Antenna Impedance: 50?
Operating Voltage: DC 7.4V
Mode of operation: Simple or semi-duplex
Dimension (W x H x D): 100 x 52 x 32 mm
Weight: 250g (including battery, antenna)
Transmitter Output power: 4W / 1W (Max 5W)
Modulation Mode: 16k?F3E / 11k?F3E
Maximum deviation: <5kHz(Wide) / <2.5kHz(Narrow)
Spurious Radiation: <7?W
Adjacent Ch. power: <=-65dB(Wide) / <=-60dB(Narrow)
Pre-emphasis characteristics: 6dB
Current: <=1.6A(5W)
CTCSS/DCS deviation: 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
Intermediation sensitivity: 8-12mv
Intermediation distortion: <10%

    main image
