ICOM V82/U82 VHF/UHF Transceiver ICOM Brand

My account

Your Recent History

Home >> ICOM Brand >> ICOM V82/U82 VHF/UHF Transceiver

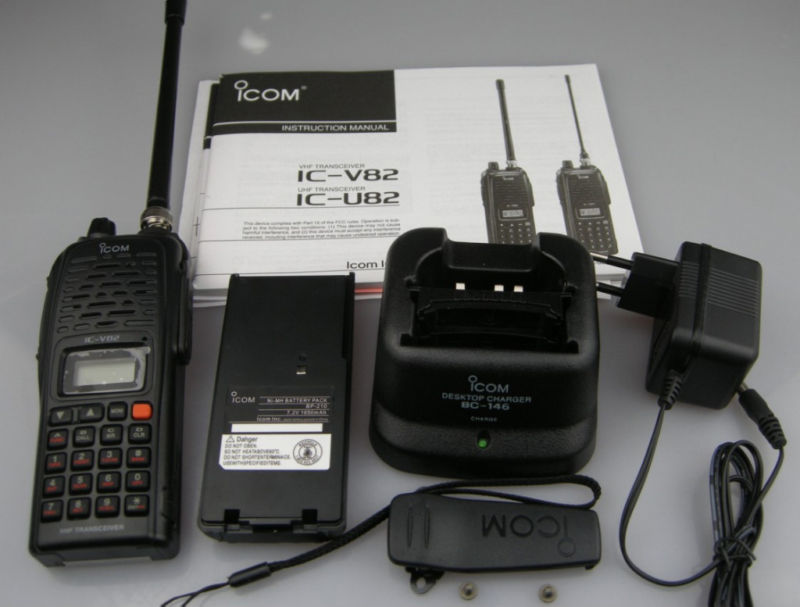

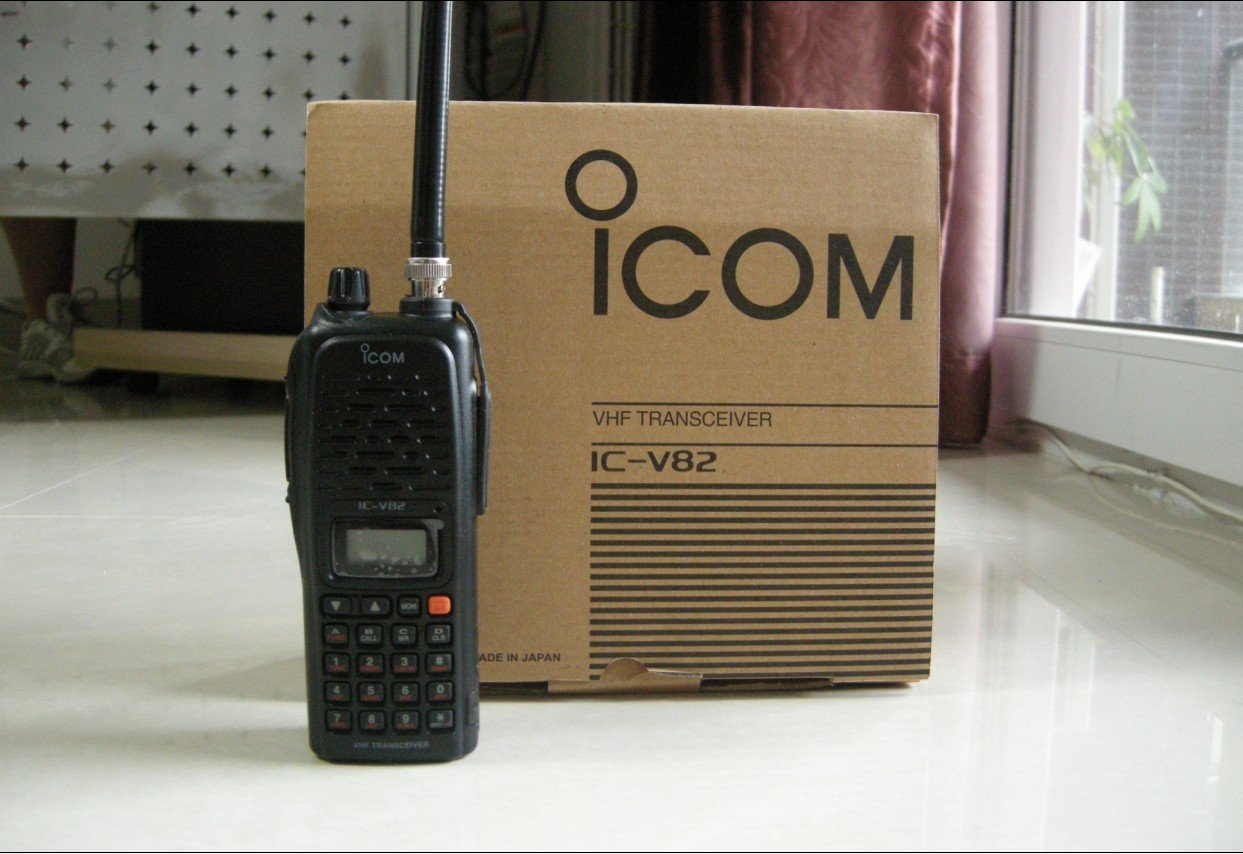

ICOM V82/U82 VHF/UHF Transceiver

[Comments(0)|Leave your Comment]

Item#:12052223125208

Score:41 (Score change Discount Voucher)

Weight:.85 kg.

List Price:~~$48.00~~

Price:$41.00

You Save:$7.00

Qty:

Prev:Portable Walkie Talkie with SCRAMBLER 108 CHANNELS (AC-100)

detail

Comment

Payment

Shipping

Origin	Japan
Model Number	ICOM V82/U82
Brand Name	ICOM
Frequency Range:	136-174MHz,400-470MHz
Storage Channel	207
Talk Range	10km
Warranty:	1 year
Price	Lowest

ICOM V82/U82 VHF/UHF Transceiver

Funtions:
1.Frequency Range:136-174MHz 400-470MHz

2.Output power:7W

3.Channel :200 memory and 10 memory banks

4.Optional digital unit, UT-118
5.Callsign calling
6.Position exchange with external GPS receiver
7.Built-in CTCSS/DTCS
8.Automatic repeater function

9.Reversible control knob and up/down buttons assignment
10.Durable construction and simple operation
11.16 DTMF dial memory
12.PC cloning capability
13.Dimension:54*139*37.5 mm

14.Weight:390g

Specification:

General

Frequency Coverage

(unit: MHz)

Version

IC-V82

IC-U82

USA

Tx 144-148

Rx 136-174^*1

Tx 420-450^*2

Rx 400-479^*2

Europe

144–146

430–440

Guaranteed Range ^*1 144-148 MHz, ^*2 440-450 MHz

Mode

F3E, F2D, F7W*
*Optional UT-118 Required

Number of memory Ch.

207 (incl. 6 scan edges and 1 call)

Operating Temp. Range

-10°C to +60°C; +14°F to +140°F

Frequency stability

±2.5 ppm (-10°C to 60°C)

Power supply requirement

7.2V DC

(6.0-10.3V DC acceptable; Icom's battery pack only)

Current drain

(at 7.2V DC)

IC-V82

IC-U82

High (7W/5W)

2.6A

2.0A

Max. audio Standby
Power Save

250mA

80mA

30mA

250mA

80mA

30mA

Antenna impedance

50Ω (BNC)

Dimensions (W×H×D) (Projections not included)

54 × 139 × 37.5 mm;

2¹/₈ × 5¹⁵/₃₂ × 1⁷/₁₆ in

Weight (approx.)

390g; 13.8oz (w/ant. and BP-222N)

Transmitter
Output power (at 7.2V DC) IC-V82 IC-U82	7.0/4.0/0.5W (High/mid/low) 5.0/2.0/0.5W (High/mid/low)
Spurious emissions	Less than -60dBc
Max. freq. deviation	±5.0/±2.5 kHz (Wide/narrow)
External Microphone connector	3-conductor 2.5(d)mm (¹/₁₀") / 2.2kΩ

Receiver
Receive system	Double conversion superheterodyne
Intermediate freq.	46.35 MHz/450 kHz (1st/2nd)
Sensitivity (typical)	0.16µV (typ.; at 12dB SINAD)
Squelch sensitivity	0.11µV (typ.; threshold)
Selectivity	More than 55/50dB (wide/narrow)
Intermodulation	65dB (typ.)
Spurious and image rejection	80dB (typ.; VHF) 70dB (typ.; UHF)
Audio output power	300mW with an 8Ω load
Ext. speaker connector	3-connector 3.5(d) mm (¹/₈”) / 8Ω
Ext. Data connector	3-connector 2.5(d) mm

Price Condition	FOB CHINA
Packaging	GIFT-BOX
Package Weight	390 Grams
Delivery lead time	within one week after receiving your payment
Minimum order	1 Piece/Pieces
Supply ability	5,000 Piece/Pieces per Month
