Wouxun KG-UV9Dplus Dual band radio 7 Band Two Way Radio Multi-frequency wide band rx FM transceiver with proramming cable

[Comments(0)|Leave your Comment]

Brand:WOUXUN walkie talkie

Item#:12120401295647

Score:15 (Score change Discount Voucher)

Weight:1.2 kg.

List Price:~~$170.00~~

Price:$100.00

You Save:$70.00

Qty:

Prev:889G GPS SOS Walkie Talkie 10W 3000mAh VHF Radio 134-174Mhz UHF 400-520Mhz 999CH Radio Transceiver Portable telsiz

Next:HG-UV98 Dual-Band UHF VHF APRS Walkie talkie Positioning Track GPS Bluetooth

detail

Comment

Payment

Shipping

Wouxun KG-UV9Dplus Dual band radio 7 Band Two Way Radio Multi-frequency wide band rx FM transceiver with proramming cable

Note:

FRQ.: V:144-148 RX:137-174MHz
U:TX:420-450 RX:400-512MHz

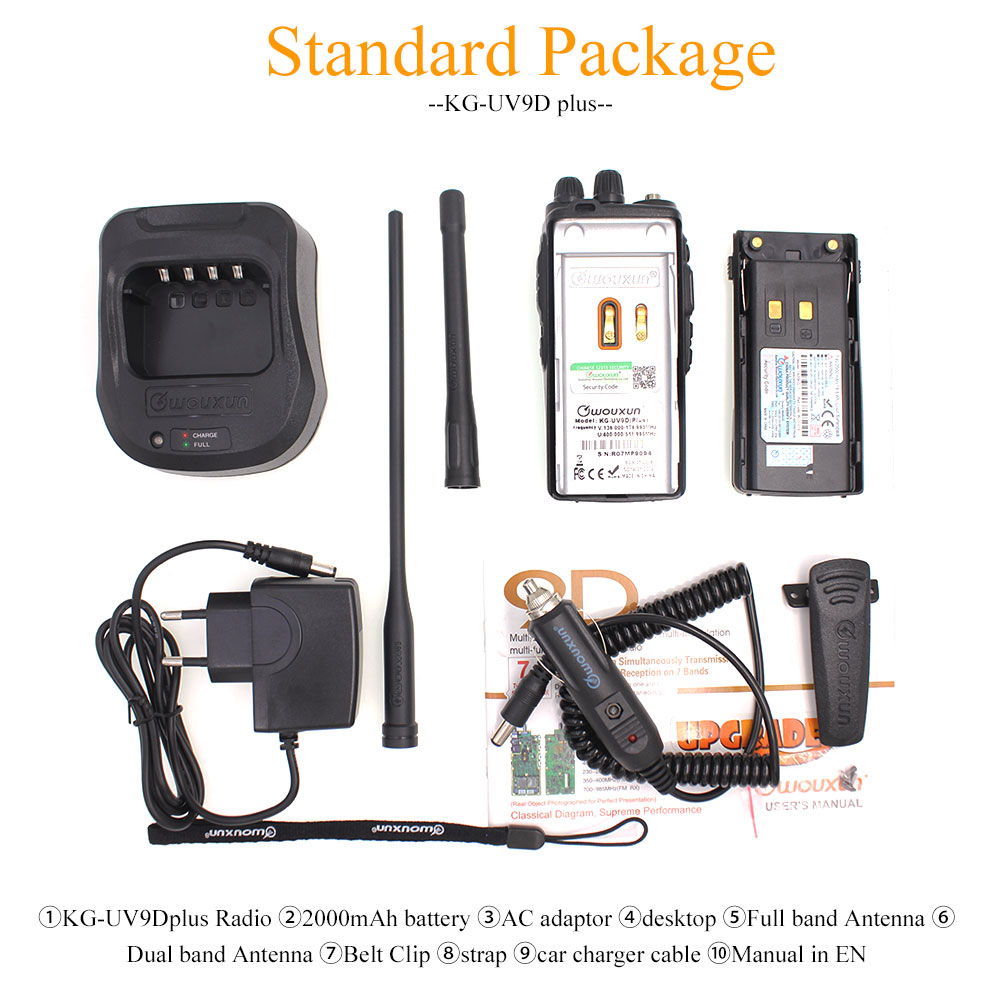

Programming cable is included for this package

Note: if you need software, please contact us.

Main features:

New Functions
1. UHF/VHF or VHF/UHF Cross-Band Repeater
2. Completely turn off display screen background light
3. Completely turn off flickering indicator light

Old Functions
1. Duplex Work Mode
2. Duplex Work on A&B Areas (TX on one area while RX on the other area simultaneously)
3. Dual Receiving
4. RX on the same/different bands of A&B areas simultaneously
5. Large Colorful Screen
6. Simultaneously Scanning on Twin Band, Scanning on Limiting Frequency (Frequency Mode, Self-definition Scanned Frequency Range), Channel Groups Scanning
7. Memory Channels 999
8. Output Power VHF H:5W,M:2W,L:1W UHF H:4W,M:2W,L:1W
9. QT/DQT Encoding/Decoding,QT/DQT Scan
10. Non-Standard CTCSS can be set arbitrarily
11. VOX
12. Multi Definition for Side keys
13. Amplitude-frequency PTT settings
14. Incoming Message Display Caller ID display
15. DTMF Encoding&Decoding
16. Channel groups scanning
17. All Calls,Group Calls And Selective Calls
18. SOS Function
19. Priority Scan Function
20. Remote Alarm
21. Wide/Narrow Bandwidth Selection (25KHZ/12.5KHz)
22. Voice Guide:English
23. English Screen Display
24. English Channel Name Edit
25. Bright Flashlight illumination
26. Single-Tone Pulse Frequency:2100Hz/ 1750Hz/1000Hz/1450Hz(signalling for activating repeater)
27. Reverse Frequency

Specifications
Frequency Range	FRQ.: V:144-148 RX:137-174MHz U:TX:420-450 RX:400-512MHz
Channel Step	2.5K/5KHz/6.25KHz/10KHz/12.5KHz 25KHz/50KHz/100KHz
Channel Number	999
Work Mode	F2D/F3E
Operating Temperature	-20℃～+40℃
Voltage	7.4V DC
Antenna Impedance	50Ω
Battery	7.4V 2000mAH
Weight	490 g

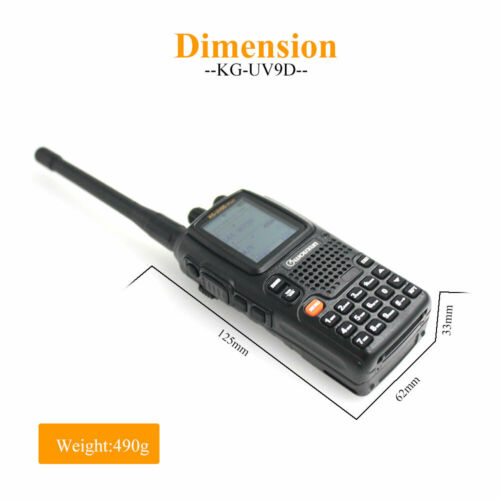

Size	124.5X61.5X33.9 (mm)
Receiver
	Wide	Narrow
Adjacent Channel Selectivity	≤70dB	≤60dB
Inter Modulation	≤65dB	≤60dB
Spurious Response	≤70dB	≤70dB
Audio Response	+1～-3dB(0.3～3KHz)	+1～-3dB(0.3～3KHz)
Signal to Noise Ratio	≥45dB	≥40dB
Audio Distortion	≤5%
Audio Power	≤500mW
Sensitivity	108-136MHz(AM) -106.0dbm SN 13dB 136-180MHz -119.0dbm SINAD 13dB 230-250MHz -116.0dbm SINAD 13dB 350-400MHz -119.0dbm SINAD 13dB 400-512MHz -119.0dbm SINAD 13dB 700-986MHz -96.0dbm SINAD 12dB
Transmitter
	Wide	Narrow
Type of Modulation	16K F3E	11K F3E
Adjacent Channel Power	≥70dB	≥60dB
Spurious Response	≥60dB	≥60dB
Audio Response	+1～-3dB(0.3～3KHz)	+1～-3dB(0.3～3KHz)
Max Frequency Deviation	±5KHz	±2.5KHz
Frequency Stability	±2.5ppm
Audio Distortion	≤5%
Output Power	VHF H:5W, M:2W, L:1W UHF H:4W, M:2W, L:1W
