  Home >> Commercial Radio >> WOUXUN walkie talkie >> Wouxun KG-UV9Dplus Dual band radio 7 Band Two Way Radio Multi-frequency wide band rx FM transceiver with proramming cable

Wouxun KG-UV9Dplus Dual band radio 7 Band Two Way Radio Multi-frequency wide band rx FM transceiver with proramming cable [Comments(0)|Leave your Comment]
Brand:WOUXUN walkie talkie
Item#:12120401295647
Score:15  (Score change Discount Voucher)
Weight:1.2 kg.
List Price:$170.00
Price:$100.00
You Save:$70.00
Qty:

Prev:AnyTone AT-D878UV Plus with Built-in Bluetooth and Free Items !!

Next: Dual Band Car Mobile Transceiver,QYT KT-UV980 Plus Dual Band Car Mobile Transceiver (upgrade version of KTUV980, Dual Band Car Mobile Transceiver

detail

Related

Comment

Payment

Shipping

Wouxun KG-UV9Dplus Dual band radio 7 Band Two Way Radio Multi-frequency wide band rx FM transceiver with proramming cable

Note:

FRQ.: V:144-148 RX:137-174MHz
      U:TX:420-450 RX:400-512MHz

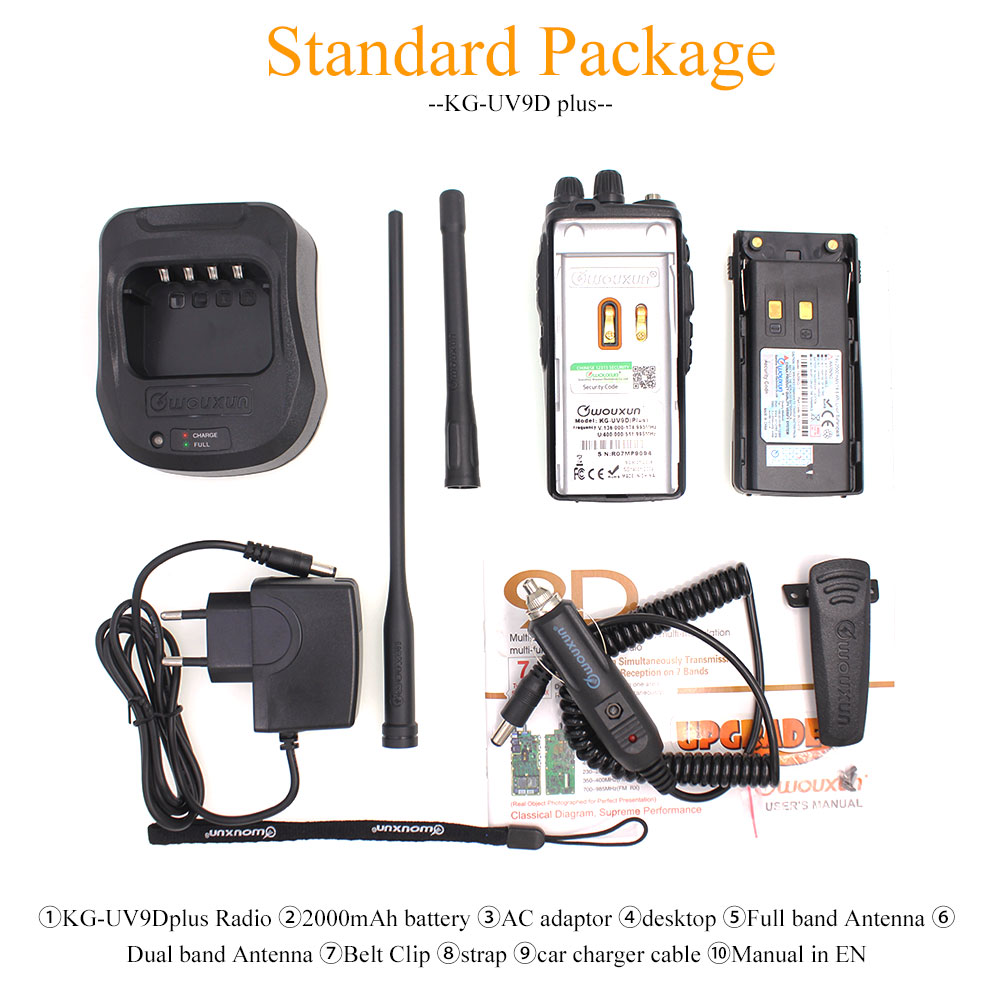

Programming cable is included for this package

Note: if you need software, please contact us.

Main features:

New Functions
1. UHF/VHF or VHF/UHF Cross-Band Repeater
2. Completely turn off display screen background light
3. Completely turn off flickering indicator light

Old Functions
1. Duplex Work Mode
2. Duplex Work on A&B Areas (TX on one area while RX on the other area simultaneously)
3. Dual Receiving
4. RX on the same/different bands of A&B areas simultaneously
5. Large Colorful Screen
6. Simultaneously Scanning on Twin Band, Scanning on Limiting Frequency (Frequency Mode,    Self-definition Scanned Frequency Range), Channel Groups Scanning
7. Memory Channels 999
8. Output Power VHF H:5W,M:2W,L:1W UHF H:4W,M:2W,L:1W
9. QT/DQT Encoding/Decoding,QT/DQT Scan
10. Non-Standard CTCSS can be set arbitrarily
11. VOX
12. Multi Definition for Side keys
13. Amplitude-frequency PTT settings
14. Incoming Message Display Caller ID display
15. DTMF Encoding&Decoding
16. Channel groups scanning
17. All Calls,Group Calls And Selective Calls
18. SOS Function
19. Priority Scan Function
20. Remote Alarm
21. Wide/Narrow Bandwidth Selection (25KHZ/12.5KHz)
22. Voice Guide:English
23. English Screen Display
24. English Channel Name Edit
25. Bright Flashlight illumination
26. Single-Tone Pulse Frequency:2100Hz/ 1750Hz/1000Hz/1450Hz(signalling for activating repeater)
27. Reverse Frequency





Specifications

Frequency Range

  FRQ.: V:144-148 RX:137-174MHz
      U:TX:420-450 RX:400-512MHz

Channel Step

2.5K/5KHz/6.25KHz/10KHz/12.5KHz
25KHz/50KHz/100KHz

Channel Number

999

Work Mode

F2D/F3E

Operating Temperature

-20℃~+40℃

Voltage

7.4V DC

Antenna Impedance

50Ω

Battery

7.4V 2000mAH

Weight

490 g

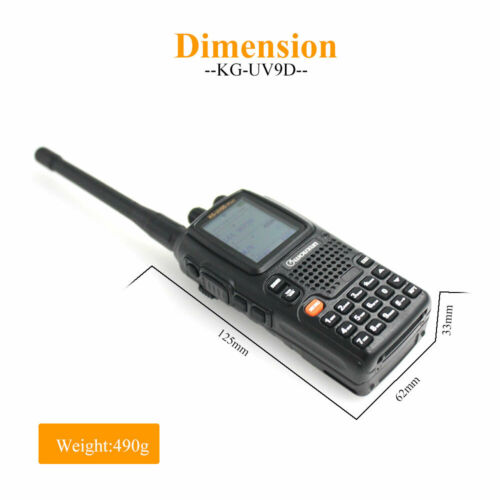

Size

124.5X61.5X33.9 (mm)

Receiver



Wide

Narrow

Adjacent Channel Selectivity

≤70dB

≤60dB

Inter Modulation

≤65dB

≤60dB

Spurious Response

≤70dB

≤70dB

Audio Response

+1~-3dB(0.3~3KHz)

+1~-3dB(0.3~3KHz)

Signal to Noise Ratio

≥45dB

≥40dB

Audio Distortion

≤5%

Audio Power

≤500mW

Sensitivity

108-136MHz(AM) -106.0dbm SN 13dB
136-180MHz -119.0dbm SINAD 13dB
230-250MHz -116.0dbm SINAD 13dB
350-400MHz -119.0dbm SINAD 13dB
400-512MHz -119.0dbm SINAD 13dB
700-986MHz -96.0dbm SINAD 12dB

Transmitter



Wide

Narrow

Type of Modulation

16K F3E

11K F3E

Adjacent Channel Power

≥70dB

≥60dB

Spurious Response

≥60dB

≥60dB

Audio Response

+1~-3dB(0.3~3KHz)

+1~-3dB(0.3~3KHz)

Max Frequency Deviation

±5KHz

±2.5KHz

Frequency Stability

±2.5ppm

Audio Distortion

≤5%

Output Power

VHF  H:5W, M:2W, L:1W
UHF  H:4W, M:2W, L:1W
