Yagi antenna 14dBi Yagi Antenna - Fully Welded Aluminium

[Comments(0)|Leave your Comment]

Item#:12101301482245

Score:33 (Score change Discount Voucher)

Weight:1.2 kg.

List Price:~~$169.00~~

Price:$33.00

You Save:$136.00

Qty:

Prev:Optus 15dBi Yagi Antenna - Fully Welded Stainless Steel

Next:Yagi antenna,RFI 13dBi 400-420MHz UHF Yagi Antenna,Yagi antenna

detail

Comment

Payment

Shipping

Telstra Next-G 14dBi Yagi Antenna - Fully Welded Aluminium

Network Provider:

Telstra

$159.00

SKU: 14DBI-WELDED-850

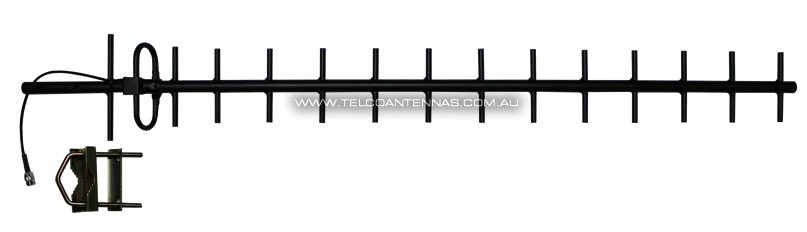

14dBi Yagi Directional 850MHz Telstra Next-G Yagi Antenna
- Perfect for Telstra Next-G and Bigpond devices
- Heavy duty 15 element 1.36m design
- Fully welded powder coated aluminium construction
- Designed to be pole mounted like conventional TV antennas
- Kit includes U-bolt for use with pole mount

This heavy duty 15 element fully welded Yagi antenna is designed for regional and remote fixed site locations. Purpose built for use with mobile phone, wireless broadband internet, and other 850MHz telemetry data applications.
Heavily tested across Australia, this antenna provides a true 14dBi gain across the 806-896MHz band making it the ideal antenna for solving Telstra Next-G signal issues, such as call drop-outs and slow wireless internet.

Having trouble with your wireless broadband internet? Nothing is more frustrating than slow internet that is constantly dropping out. Maximise both the speed and reliability of your wireless broadband connection with this high quality fully welded aluminium antenna.

No phone reception? Designed specifically for Telstra Next-G mobile phones and modems, this antenna can boost the signal of any mobile phone on the Telstra network even if your phone doesn't have an external antenna port. We have a comprehensive range of both universal and fitted cradles for all major brands, as well as direct connecting patch leads for phones and modems with external ports.

This directional antenna is designed for use on stationary objects such as buildings. Ideally mounted as high as possible, this type of antenna must be pointed towards a mobile phone tower to perform properly. For tips and best practices in mounting and locating mobile phone towers, please see Guides section.

Australian Network Compatibility

Network Compatibility	Yes/No	Gain
Telstra Next-G™ (850MHz)		14dBi
New Vodafone Network (850MHz)* *Please check Vodafone Coverage Map		14dBi
All other networks		-

New Zealand Network Compatibility

Network Compatibility	Yes/No	Gain
Telecom XT NZ - Voice, Text, & 3G Internet (850MHz)		14dBi
All other networks		-

Electrical Specifications

Frequency Range: 806-896MHz
Input Impedance: 50-ohms
VSWR: <1.5:1
Vertical Beamwidth: 28°
Horisontal Beamwidth: 25°
Front to Back Ratio: >20 dB
Radiation: Directional
Maximum Power: 100W

Mechanical/Environmental

Construction: Fully Welded Aluminium, Matt Black Powder Coat
Cable: 38cm LMR195 Short Tail
Connector: N Female
Mount: Angle bracket suits 25-50mm tubing.
Weight: 1.05kg
Wind Velocity: 216km/hr (60m/s)
Working temperature: -50°~+70°
Dimensions: 1360 x 65 x 180mm (L x W x H)
Lightning Protection: Direct Ground

Read More: Specification Sheet.

Please Note:This product is over 1200mm long and can only be delivered by a courier (not Aust Post), please leave an appropriate address for a signatory.

Price: $159.00
