  Home >> Mobile >> High Quality Baofeng Bf-H7 Source High Power Portable Long Distance

High Quality Baofeng Bf-H7 Source High Power Portable Long Distance [Comments(0)|Leave your Comment]
Item#:18032817234375
Score:200  (Score change Discount Voucher)
Weight:2 kg.
List Price:$30.00
Price:$25.00
You Save:$5.00
Qty:

Prev:Good Selling Two Way High Power Base Radio 75W Mobile Station

Next:High Power 80W 136-174MHz 100km Mobile Walkie Talkie Long range Transceiver Analog Ham Radio FT-2980R

detail

Related

Comment

Payment

Shipping

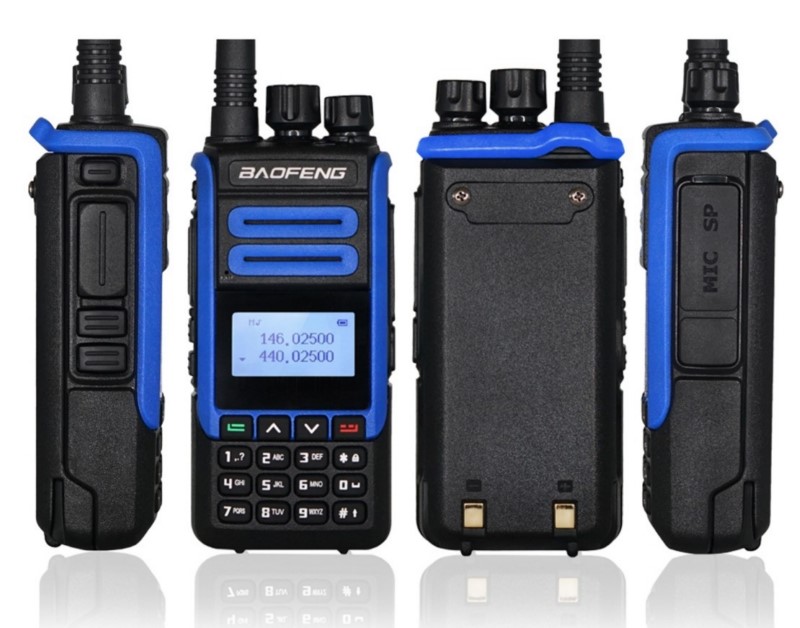

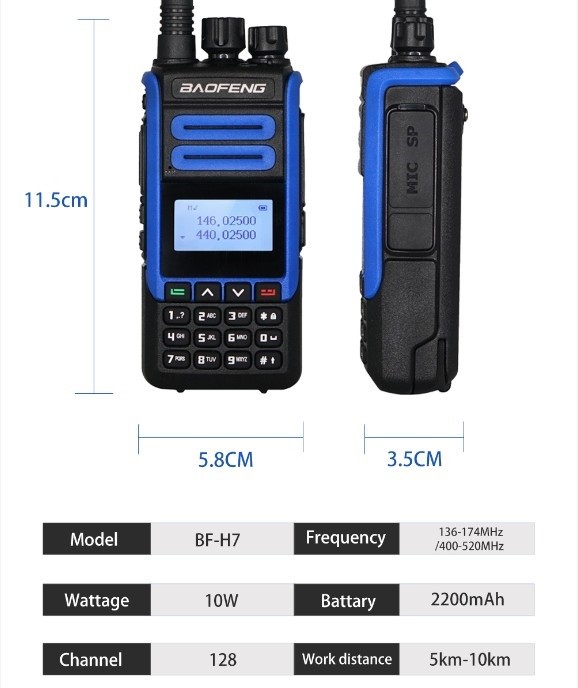

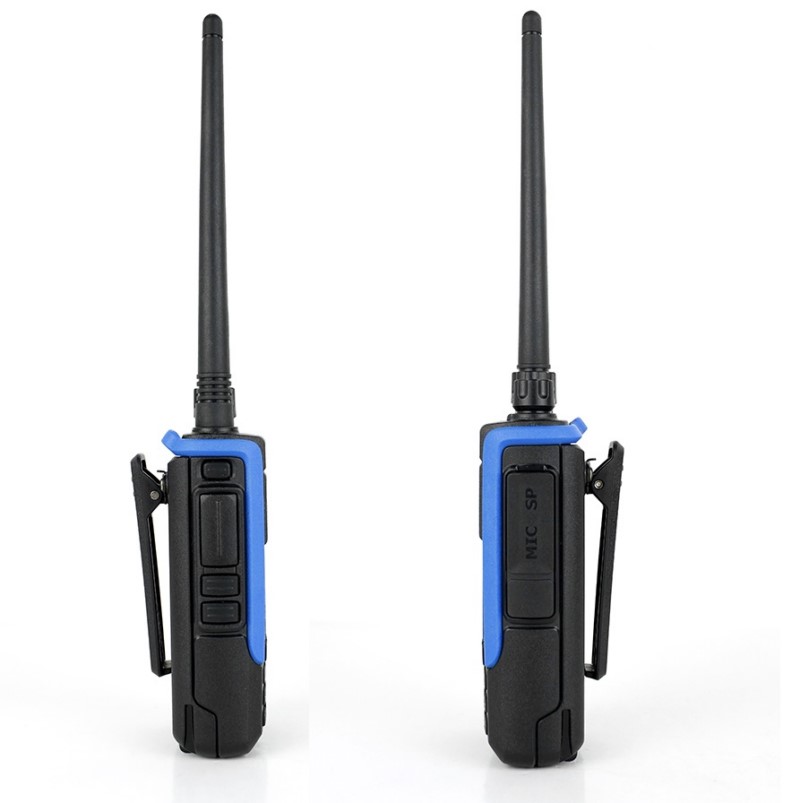

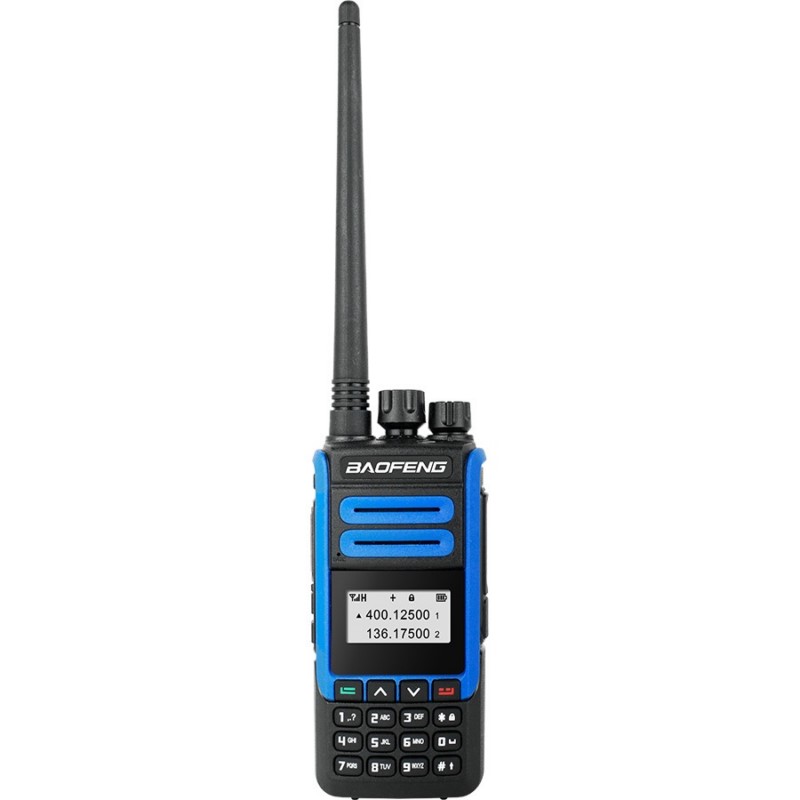

High Quality Baofeng Bf-H7 Source High Power Portable Long Distance

Black
Lead Time:
Quantity(Pieces)1 - 500501 - 10000>10000
Est. Time(days)515To be negotiated
Customization:
Customized logo(Min. Order: 2000 Pieces)
Customized packaging(Min. Order: 2000 Pieces)

More

Shipping:
Support Express · Sea freight · Land freight · Air freight
Quick Details
Place of Origin:
Fujian China
Brand Name:
Baofeng
Model Number:
BF-H7
Type:
Handheld
Dimensions:
98* 43 * 126 mm
Frequency Range:
136-174/400-520MHz
Storage Channel:
128channel
Talk Range:
3-5km
Product Name:
BAOFENG BF-H6
Warranty:
12 Months
Radio Type:
High Power Walkie Talkie
Output Power:
10Watt
Operating Voltage:
DC7.4V
Battery capacity:
2800mAh
10w amateur rado:
10w two way radio
Walkie talkie:
Dual Band Interphone
Applications:
Communication radio
Channel Spacing:
2.5/5/6.25/10/12.5/20/25KHz
Certification:
FCC, ce, RoHS
Supply Ability
Supply Ability
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1x Baofeng BF-H6 10W Dual Band Walkie Talkie -1x 2200mAh Li-ion Battery Pack -1x Dual Band Antenna -1x Hand Strap -1x Belt Clip -1x Earpiece -1x User Manual -1x Desktop Charger with EU Plug -1x Plug Adapter(Depends on your delivery address)
Port
XIAMEN SHENZHEN
Picture Example:
Lead Time:
Quantity(Pieces)1 - 500501 - 10000>10000
Est. Time(days)515To be negotiated

Details Images
Application Scenario
Products Description
General
Frequency Range VHF:136-174MHz UHF:400-470MHz(Dual band)
Memory Channel 128 Group
Channel Spacing 25KHz(Wide),12.5K(Narrow)
Operating Voltage DC7.4V
Frequency Stability ±2.5ppm
Operating Temperature -20~+60℃
Antenna Impedance 50Ω
Transmit Current H≤2.5A;M≤1.8A;L≤1.1A
Modulation(Wide/Narrow) 16KΦF3E/11KΦF3E
Maximum deviation ≤±5 kHz/≤±2.5 kHz (W/N)
Stray Power ≤7.5uW
Adjacent Channel power ≤-65dB/≤-60dB
Signal-to-noise(wide/narrow) ≥-45dB/≥-40dB
QT/DQT Deviatio(wide/narrow) 0.7±0.1KHz/0.4±0.1KHz
Modulation Sensitivity 8-12mV
Demission 134*62*32mm(no including the antenna)
Weight About 300g(include in battery and antenna)
Receiver
Receiver Sensitivity ≤0.25uV(12dB SINAD)
Audio Power [email removed by eBay]
Audio Distortion <10% Signal-to-Noise ≥45dB Adjacent Channel Selecitivity(wide/narrow) ≥-65dB/≥-60dB Intermodulation(wide/narrow )
≥-65dB/≥-60dB Stray Suppression ≥-65dB Receive Current ≤380mA Package Include: -1x Baofeng BF-H6 10W Dual Band Walkie Talkie -1x
2200mAh Li-ion Battery Pack -1x Dual Band Antenna -1x Hand Strap -1x Belt Clip -1x Earpiece -1x User Manual -1x Desktop Charger
with EU Plug -1x Plug Adapter(Depends on your delivery address)

Packing & Delivery



Certifications
FAQ
1.Q.Do you have MOQ? A: Depends on different ideas, Can be negotiated.The larger the quantity is, the competitive the unit price will be.
2. Q: Can you offer free sample to test?
A: In general, sample cost should bear by new clients. Bue the sample cost will be refund when the order reach 1000 stes.

3. Q: Do you accept customized?
A: Yes, OEM and ODM services are all supported.

4. Q: When can you ship the item?
A: 1-3 days for sample order, 3-5days for bulk order if we have stock.

5. Q: When can i find tracking in Internet?
A: Usually, we will give you the tracking number and you can find the information on Internet in 2days.
